Correctly measuring the bar belt pitch is crucial when ordering spare parts for agricultural machinery. An error in measurement can result in misaligned drive wheels, poor belt tracking , and ultimately, machine downtime. In this step-by-step guide, we explain how to correctly measure the bar belt pitch to avoid costly mistakes.

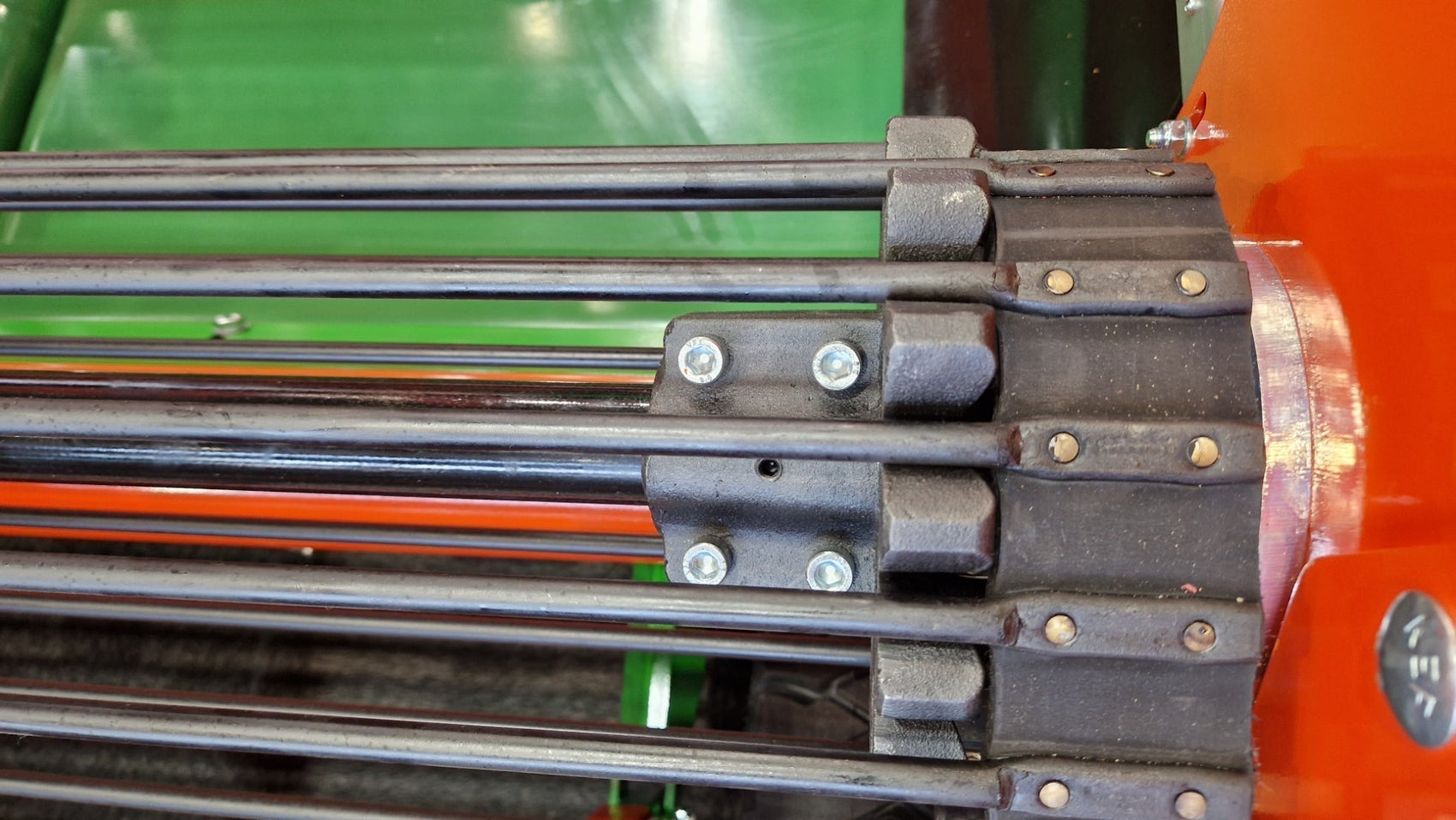

What is a rod tape pitch?
The pitch of a bar tape is the distance between successive bars of the tape. It is one of the most important technical parameters, determining:
-
adjustment of the drive wheels,
-
proper power transmission,
-
smooth operation of the conveyor.
Each machine may require a different pitch, so there is no point in guessing or relying on eyeballs .
Why is correct measurement so important?
An incorrectly selected pitch may cause:
-
slippage of the rod tape,
-
accelerated wear of drive wheels,
-
uneven operation of the conveyor,
-
decrease in machine performance.
What's more, manufacturers offer several very similar pitches , sometimes differing by just a few millimeters - and this is enough for the part not to fit.
How to measure rod tape pitch step by step?
Step 1: Prepare the measuring tape
-
Stop the machine and secure it against starting.
-
If possible, clean the tape of soil and plant debris .
-
It is best to measure the tape on a straight section , not on a circle.
Step 2: Identify the rods
The pitch is measured between the bars , not between the links or sides of the belt.
👉 Most often we measure:
-
from the center of a rod to the center of the next rod .
This is the most accurate and most commonly used method.
Step 3: Take the measurement
-
Use a tape measure or calipers .
-
Measure the distance between the centers of two adjacent rods .
-
For greater accuracy, you can:
-
measure the distance between 5 or 10 rods,
-
and then divide the result by their number .
This eliminates measurement error.
-
Step 4: Check the result
The most common bar tape pitches include:
-
32 mm
-
36 mm
-
40 mm
-
45 mm
⚠️ Note: a difference of a few millimeters is of great importance when selecting drive wheels.
The most common errors when measuring scale
Farmers most often make these mistakes:
-
measuring from edge of rod to edge ,
-
measurement on a dirty or stretched section of tape,
-
relying on old catalogs without checking the actual dimensions,
-
assuming that "the same tape was there before."
Remember - the ribbon may have already been replaced or come from a different manufacturer.
Tape pitch and drive wheels
The pitch of the bar belt must be perfectly matched to the drive wheels .
If you are planning to replace:
-
standard wheels,
-
aggressive wheels,
-
the entire rod tape,
First measure the pitch and only then order the parts.
👉 Otherwise, even the best drive wheels will not work properly.
Summary – accurate measurement means fewer problems
Correct measurement of the bar tape pitch:
-
saves time and money,
-
eliminates slippage problems,
-
guarantees the fit of the drive wheels,
-
ensures smooth operation of the machine during the season.
If you have any doubts about measuring or selecting parts, it is better to measure twice than to order twice .
