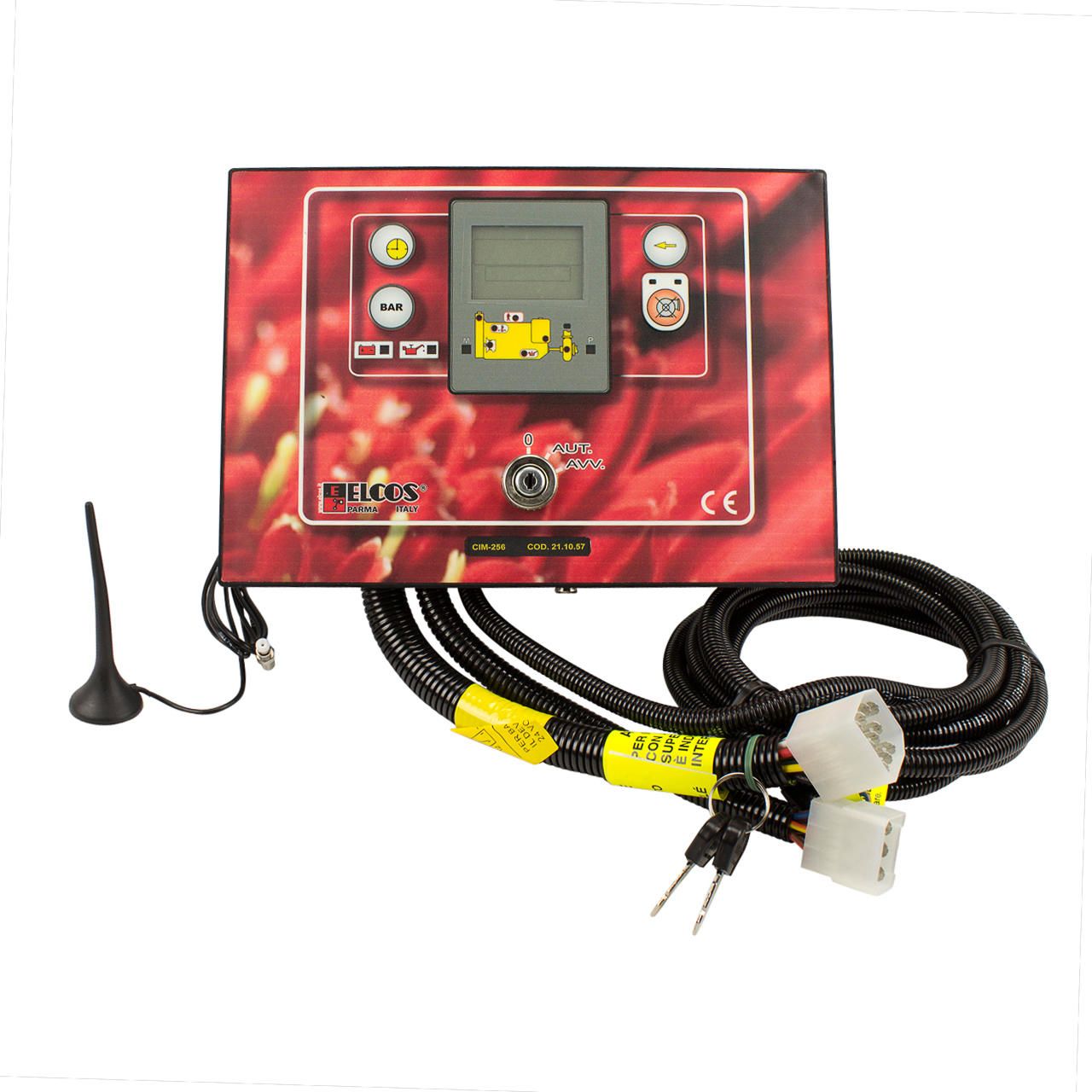

ELCOS CIM 250/10 motor pump controller with GSM function
Engine and pump monitoring with digital display and SMS function
In the event of a malfunction, an SMS is immediately sent to the saved number.
The SMS also contains an error code explaining the cause of the engine failure (e.g., low water pressure). A status query is also possible at any time. The recipient receives a reply SMS with the displayed parameters, timer, pressure, fuel level, etc.
To use the SMS function, an active SIM card with sufficient credit to send SMS messages is required.
For motor pumps, monitoring the following functions:
- Oil pressure
- Engine temperature
- V-belt
- Fuel level
- Coolant
- Pump monitoring (vacuum/overpressure)
For mounting on a bracket (using 3 screws from the bottom)
Advantages:
- Easy menu navigation
- Large adjustment knobs
- Vacuum and overpressure adjustment in 0.5 bar increments
Scope of delivery
- Pump pressure switch
- Engine wiring harness
- Operating manual (in German)
- Installation manual
- Working current relay
When using a solenoid for engine stop, a working current relay must be used!
Otherwise, the engine monitoring unit may be damaged due to excessive current consumption.
